Saturday, June 27, 2009

Chara's H-29

::

While waiting for the avionics for my ARF profile A-10, I decided to start another build.  So I surf my way to RCGroup's Electric Scratch Built Foamies (planes). And here is what caught my eyes > Chara' pusherprop jet - the H-29.

Simple plane. Simple build. I decided to make one myself.

Assembly stage, cutting and test fitting the  the main components while Matthew takes his turn on my Mac Mini.




After almost a day, my H-29 is ready and is now waiting to be maidened.

::

Friday, June 05, 2009

A-10 at 36" WS

::

1st sitting
Started scratch building a profile A-10.  I planned it as a 36" wingspan pusher powered by a small brushless outrunner way at the tail.

The fuselage at 33" long and the main wing at 36" span.

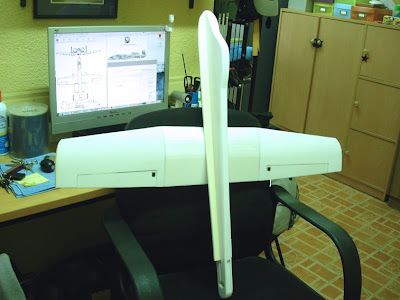

Wing on a test-fit, looks good to me.


2nd sitting:
Dummy engines and landing gear fairings made and added.





3rd Sitting:
On my 3rd sitting I cut another foam board for the tail section.  This completes the component for the whole frame.

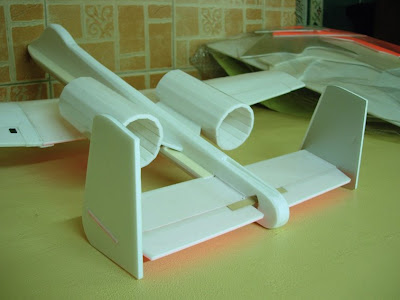

The tail section with working elevator and stabilizer fins.

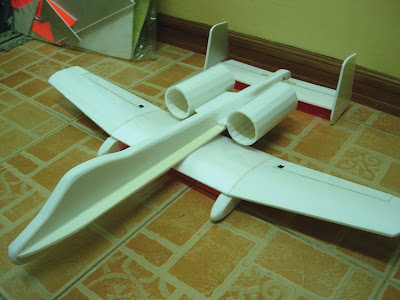

The completed frame.  The avionics will be next.  I don't have plans of painting the plane, I like it white.


Here is the under belly with carbon fiber tube running the middle. Now my plane is ARF.

::
